Kolaborasi 3CX webmeeting dengan Logitech Group

150 150 admin

Jika ruang meeting kantor anda cukup luas dan membutuhkan kordinasi meeting secara online, Logitech group dapat di gunakan sebagai piranti meeting online.

Dengan kamera yang dapat di setup sesuai dengan layout dan size, audio coverage hingga 8.5 meter dan optional kable 10 meter dan 15 meter dapat meningkatkan jangkauan dari speakerphone maupun kamera.

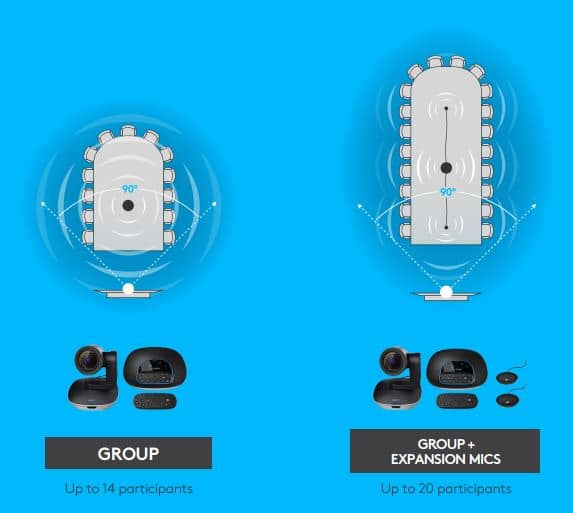

Berikut rekomendasi layout yang di sarankan oleh Logitech Group :



Dengan kemampuan 10x zoom, HD 1080p/30, sangat baik untuk melakukan presentasi, whiteboard dan di lengkapi dengan fiture kontrol pan/tilt dan zoom hingga 90 derajat.

Teknikal spesifikasi :

CAMERA

    • Smooth motorized pan, tilt and zoom controlled from remote or console
    • 260 pan
    • 130 tilt
    • 10x lossless HD zoom
    • 90 field of view
    • Full HD 1080p 30fps
    • H.264 UVC 1.5 with Scalable Video Coding (SVC)
    • Autofocus
    • 5 camera presets
    • Far-end control (PTZ) of ConferenceCam product (with supported services)
    • Kensington security slot
    • Video mute/unmute LED indicator
    • Standard tripod thread

REMOTE CONTROL

    • Camera, speakerphone, and call control
    • 5 camera presets
    • Docks on speakerphone
    • IR 8.5 m/28-foot range
    • CR2032 battery (included)

SPEAKERPHONE

    • Full-duplex performance
    • Acoustic echo cancellation
    • Noise reduction technology
    • Ultra-wideband audio
    • Pairs with mobile devices viaBluetoothand NFC
    • LCD for caller ID, call duration and other functional response
    • LEDs for speakerphone streaming, mute, hold, andBluetooth
    • Tactile buttons for call answer/end, volume and mute,Bluetooth, and camera controls
    • 5 camera presets for pan, tilt, and zoom settings
    • Kensington security slot

MICROPHONES

    • Pickup range: 6m / 20 ft
    • Pickup range with expansion mics: 8.5 m / 28 ft
    • Four omnidirectional, beamforming microphones
    • Frequency response: 100Hz 11KHz
    • Sensitivity: -28dB +/-3dB
    • Distortion: <5% from 200Hz

HUB / CABLES / POWER

    • Central Hub connects and powers all components
    • Under-table mounting adhesive included
    • One cable to camera: 5 m / 16 ft
    • One cable to speakerphone: 5 m /16 ft
    • Extended cables available (10 m and 15 m)
    • One USB cable for connection to PC/Mac (2 m / 6.6 ft)
    • AC Power adapter with regional plugs
    • Power cable (3 m / 9.8 ft)

MOUNT

  • Dual-purpose bracket works for both wall mounting and tabletop elevation
